B37 Pneumatic Pick Air Shovel Cement Crusher Pneumatic Chipping Hammer

air pick air pick
pneumatic concrete breaker pneumatic concrete breaker
pneumatic concrete breaker machine pneumatic concrete breaker machine
pneumatic breaker machine pneumatic breaker machine

Short Description:

Product Description: B37 pneumatic crushing pick is a tool powered by compressed air. The compression the air is distributed to the two ends of the cylinder block in turn, so that the hammer body ca……

Product Description:

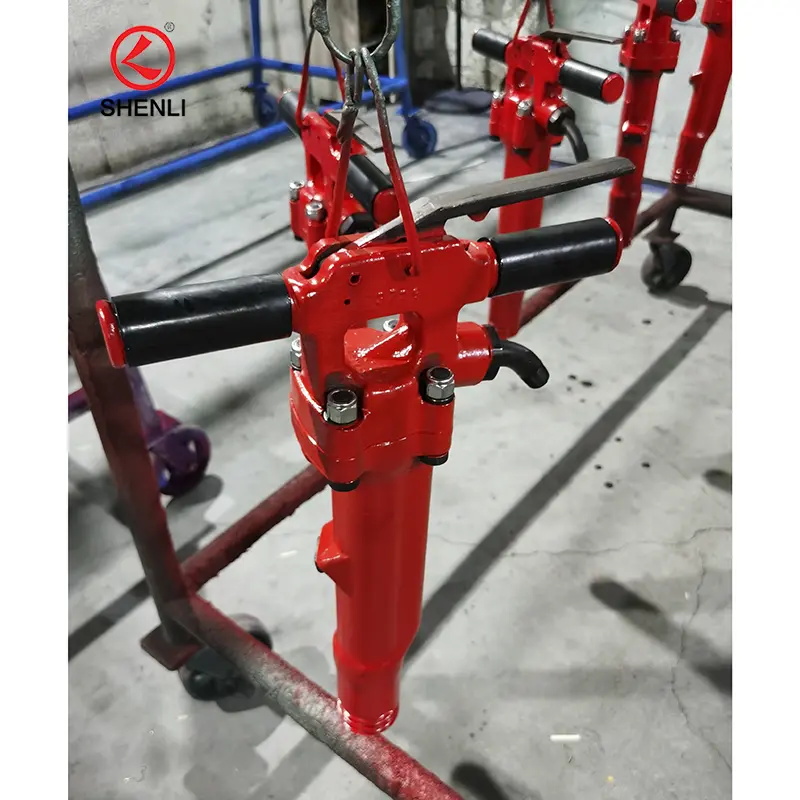

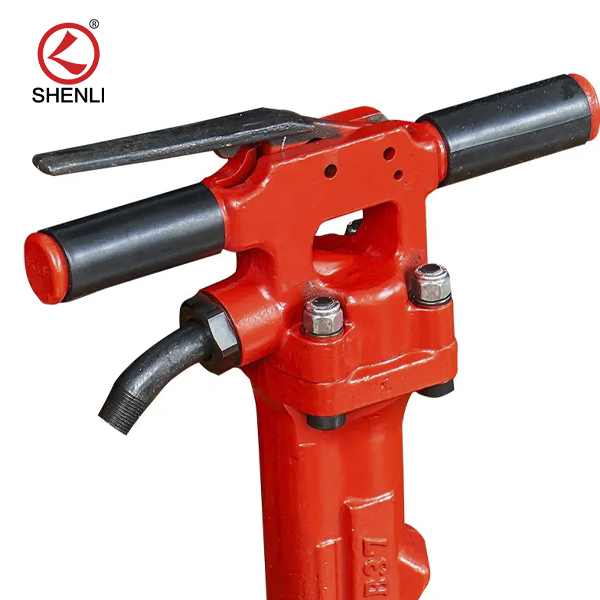

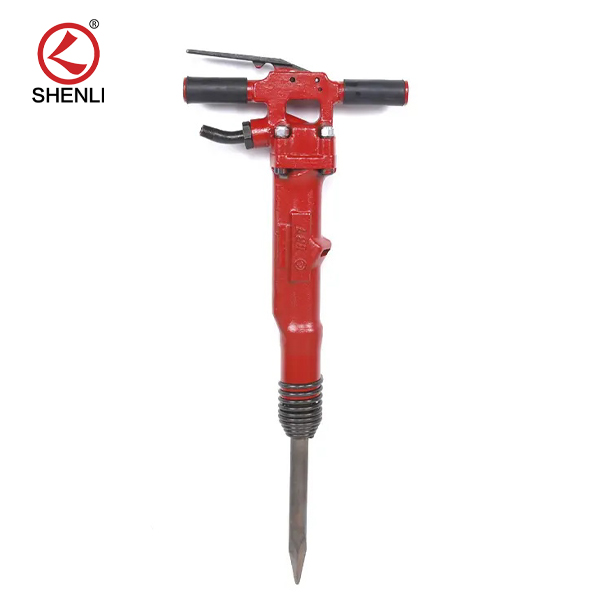

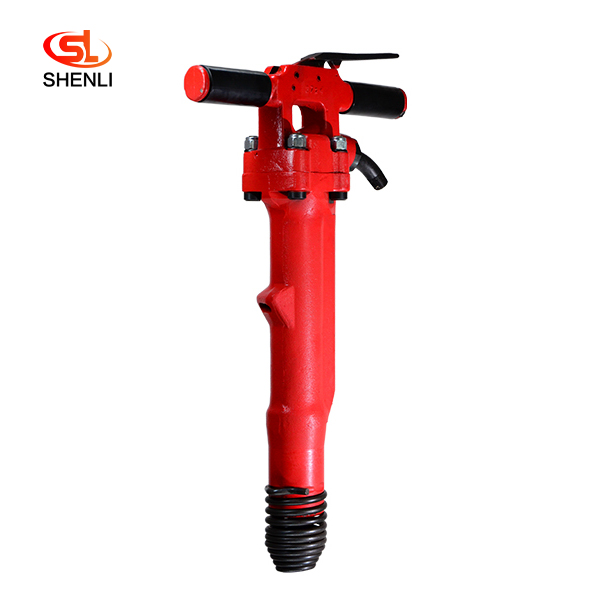

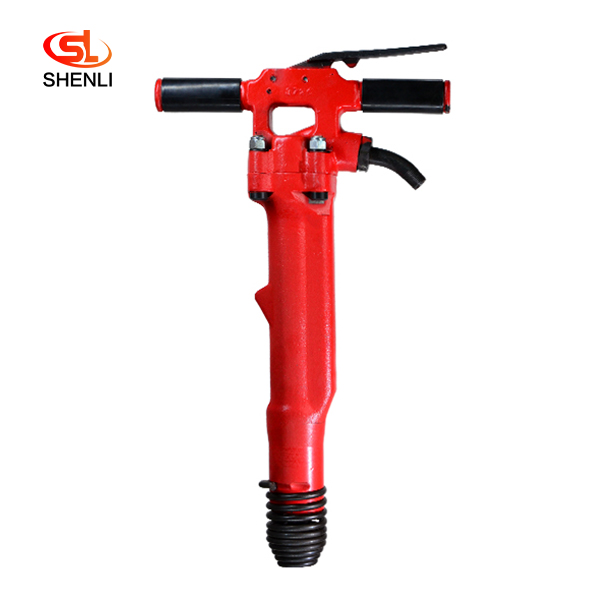

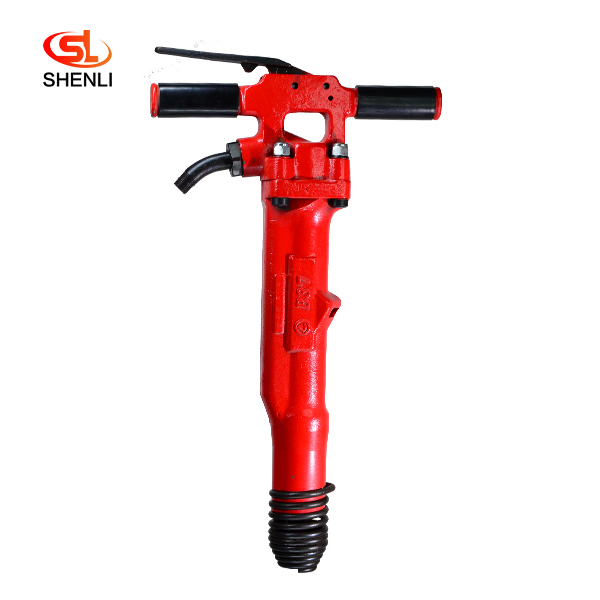

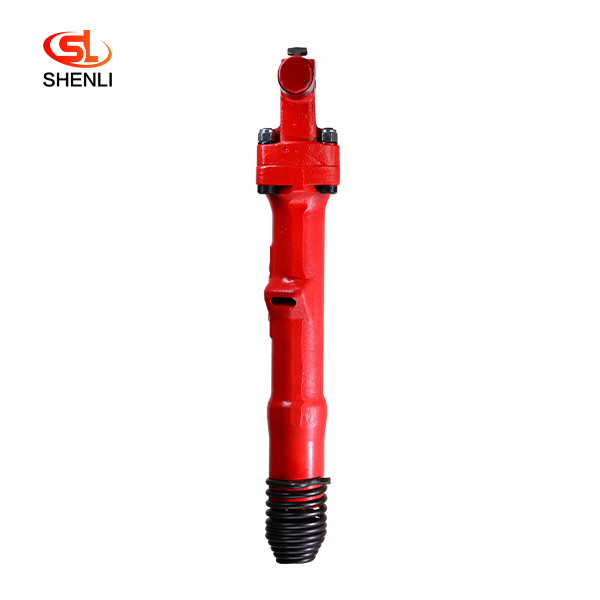

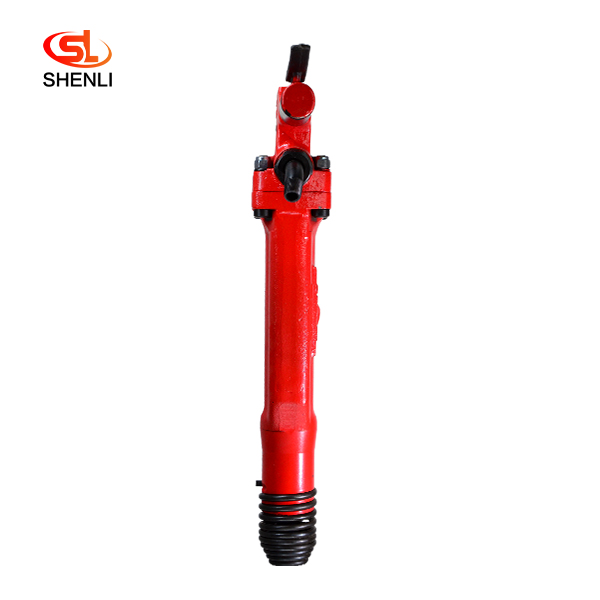

B37 pneumatic crushing pick is a tool powered by compressed air. The compression the air is distributed to the two ends of the cylinder block in turn, so that the hammer body carries on reciprocating movement impact At the end of the drill, drill the drill into the concrete layer to split it into blocks.

Applications:Construction and installation work to break concrete, frozen soil and ice, mining soft rock, demolition of walls, pavement, cement, etc;

Function:

High Power High Productivity

Long piston stroke provides superior impact energy.

High Durability Easy Maintenance

Reinforced cup retainer for high durability

Replaceable bushing to protect wear of cylinder.

Simple structure for less maintenance

pneumatic breaker machine

Technical parameters:

Product Model B37
Piston diameter (mm) 44
Piston stroke(mm) 142
Striking frequency(B.P.M) 1050
Net weight(KG) 17
Overall length(mm) 580
Air consumption(m³) 1.8
Air tube size(mm) 19
Brazing tail size(mm) R30*87
Size of air inlet(P/T) 3/4

pneumatic concrete breaker pneumatic concrete breaker machine air pick
